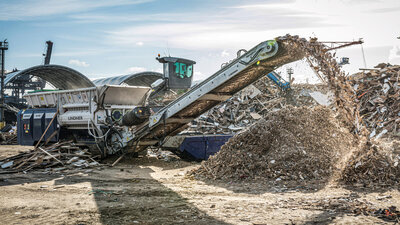

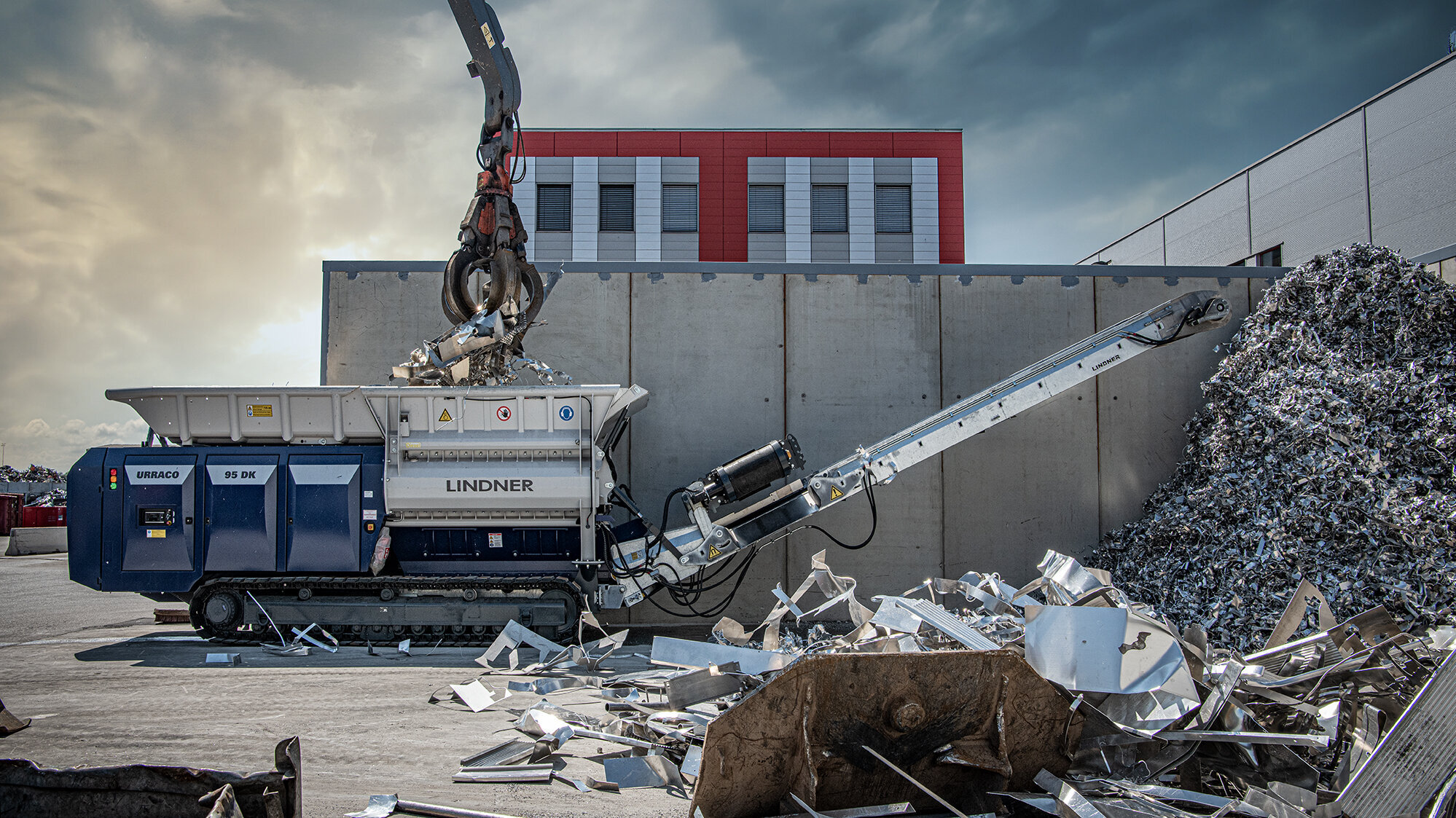

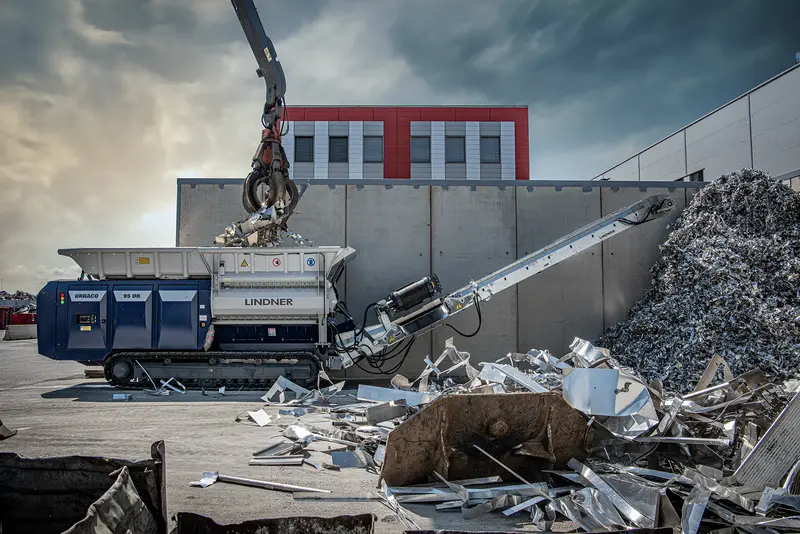

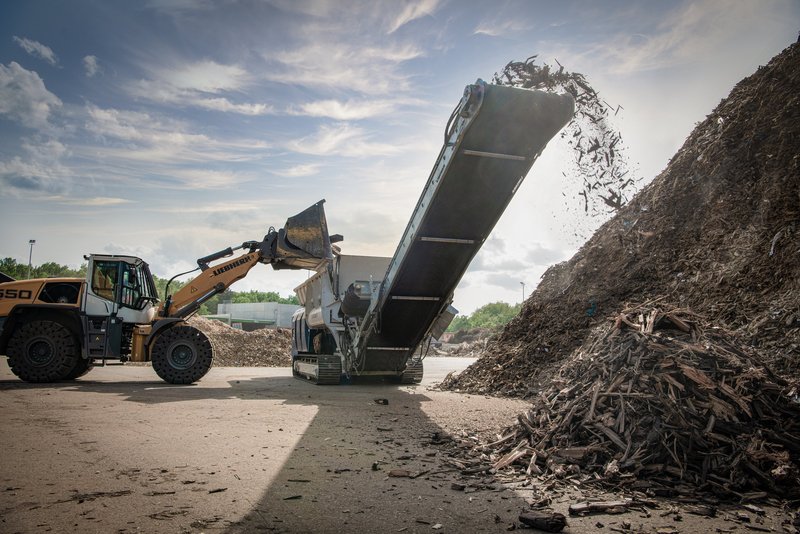

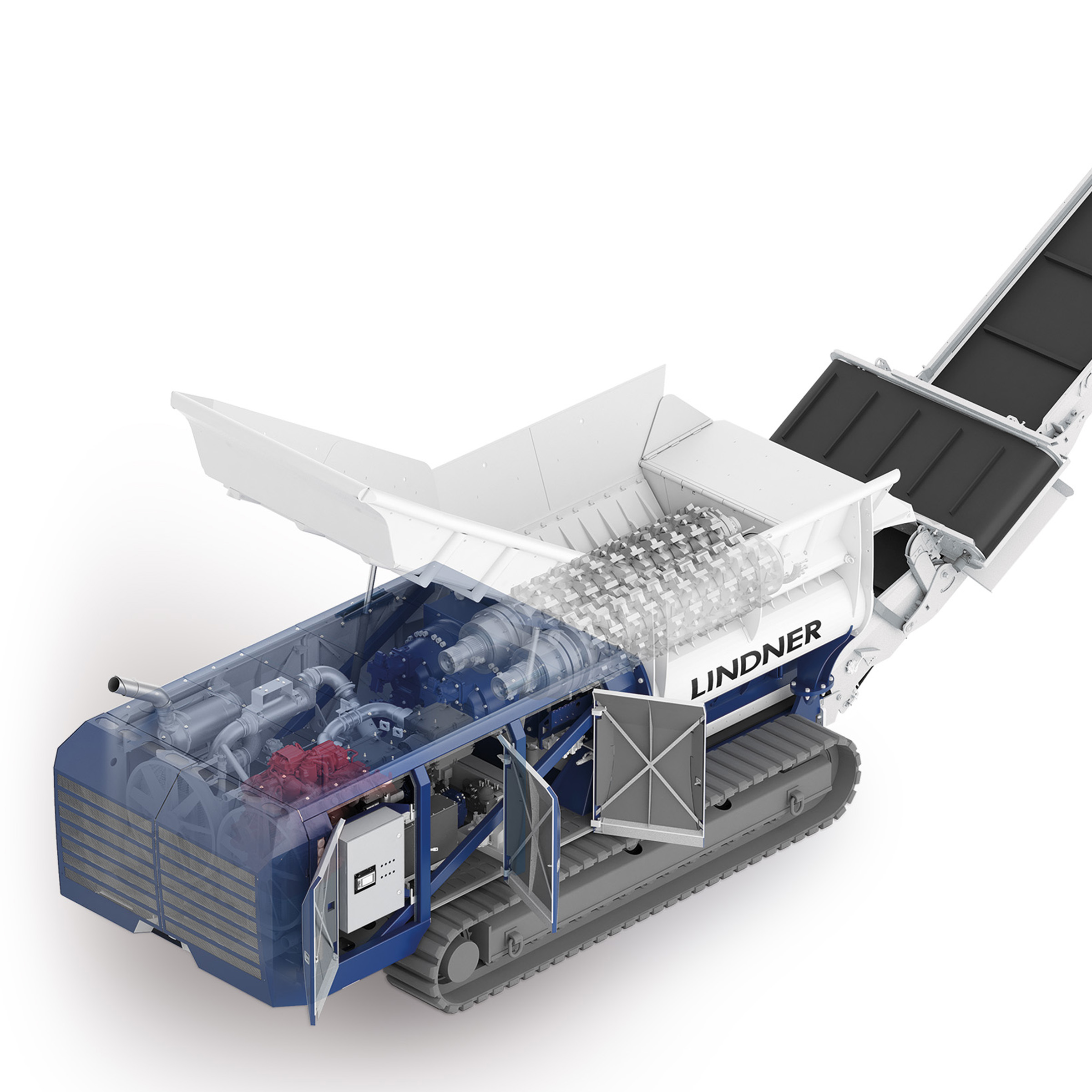

Urraco 95 DK

The Most Powerful On Site.

Takes Mobile Shredding To the Extreme:

Maximum Output, Full Mobility.

Thanks to its extremely powerful engine, long shaft length and aggressive intake, the twin-shaft Urraco 95DK shredder makes short work of all materials. Extremely efficient and reliable with low wear and tear, this machine is easy to maintain and has a low rate of energy consumption per tonne of shredded material.

Twin-Shaft Cutting System

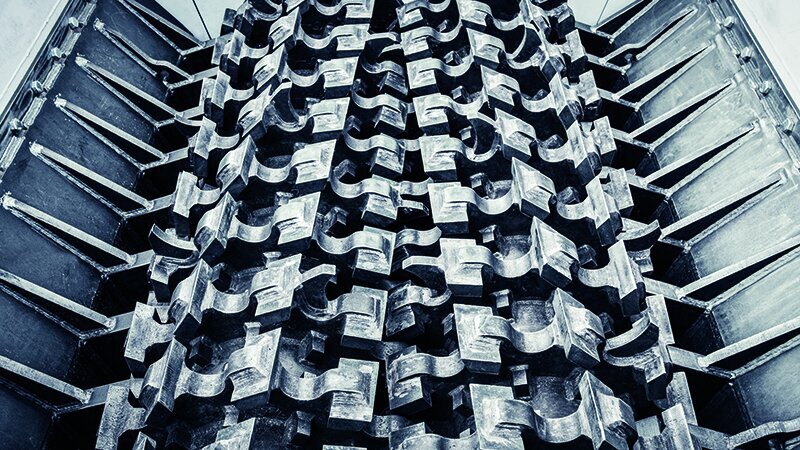

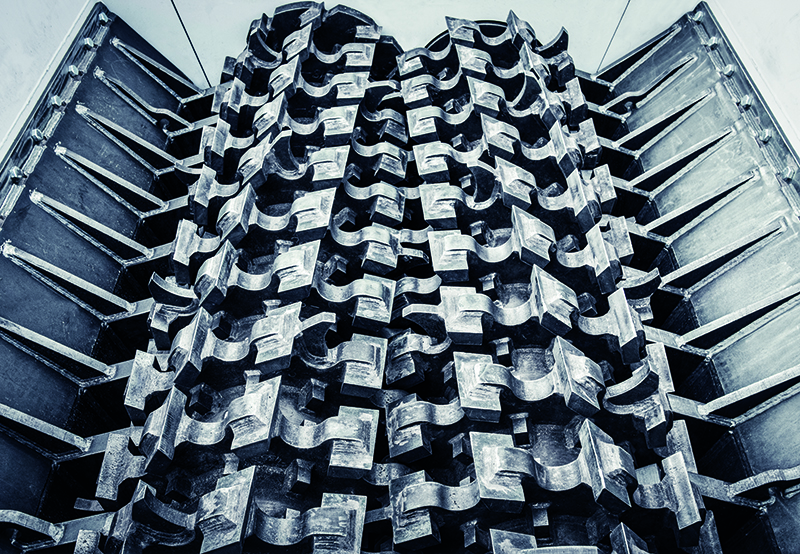

Robust Twin-Shaft Cutting System

The Urraco 95‘s slow-speed twin-shaft cutting system with cutting tools 70% longer than its smaller brother, the U75, offers aggressive intake and consequently ensures highly efficient shredding processes. Depending on the shaft selected, even the most difficult materials such as railway sleepers and light scrap metal can be processed safely and effectively.

incredibly productive thanks to aggressive intake and the extra long shaft
adapts perfectly to the material thanks to shaft pairs available in different designs
maximum resistance with our welded crushers, rippers, scrapers and breaker bars

Power Unit

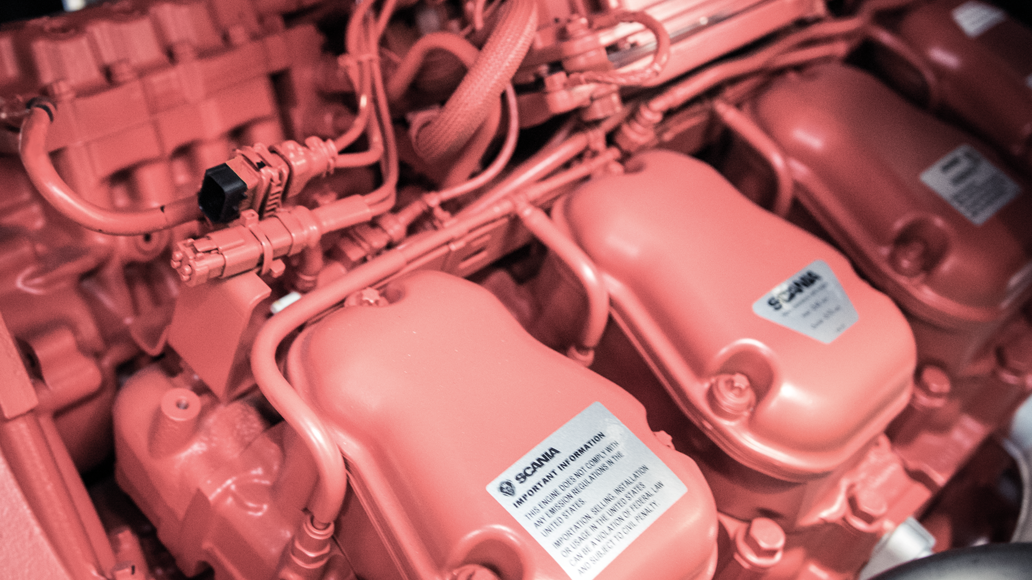

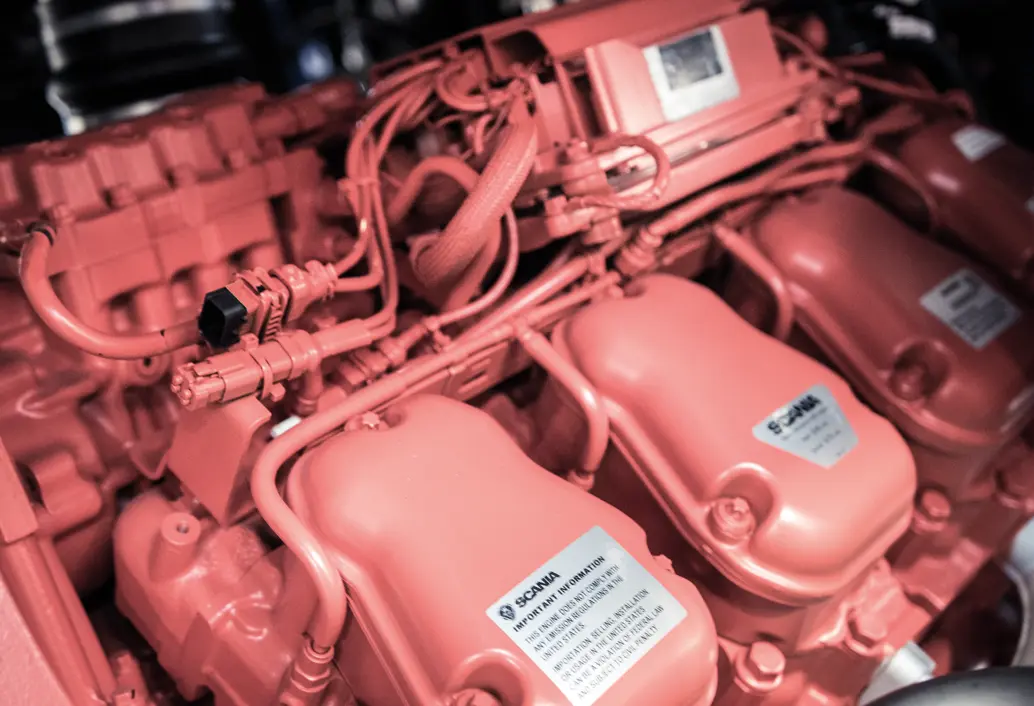

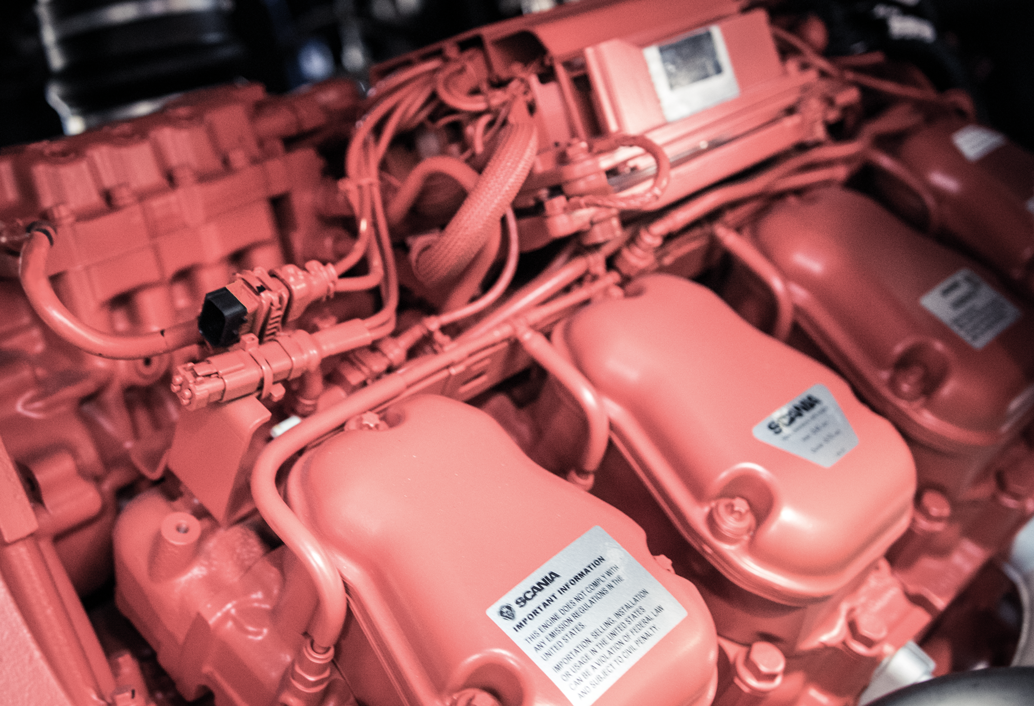

Powerful 566 KW Diesel Engine

The Urraco is powered by an environmentally friendly, state-of-the-art diesel engine from Scania with the lowest emission standards (EU Stage V / US Tier 4f / NC (non compliant)). The 3-circuit cooling system working in unison with the engine and hydraulics ensures perfect air supply and cooling.

efficient shredding with our 566 kw diesel engine from scania
particularly long service life ensured by an ideal interaction between the engine and the hydraulics
complies with all exhaust gas regulations thanks to our state-of-the-art scr system

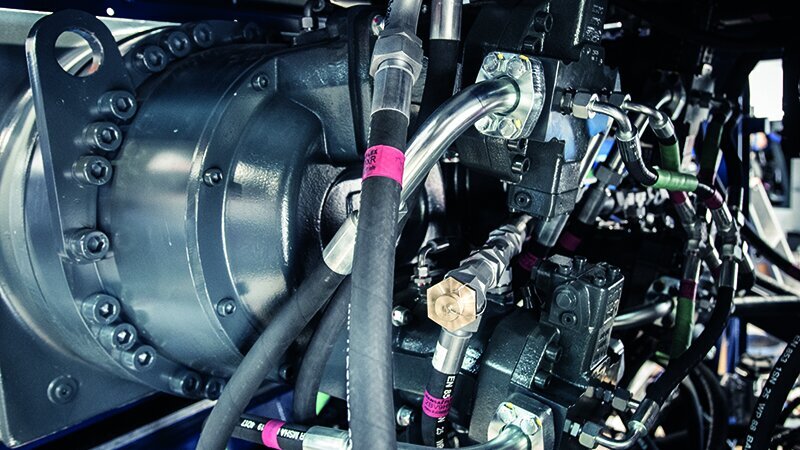

Mobile Hydraulics

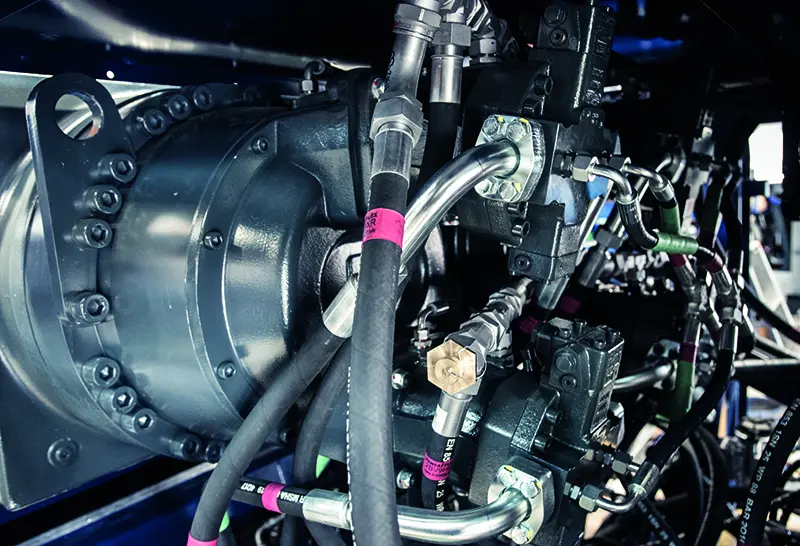

Proven Mobile Hydraulics

The hydrostatic drive sports self-regulating hydraulics with a maximum torque of up to 480,000 Nm, crushing material powerfully with its shafts.

high output thanks to the self-regulating hydrostatic double drive
safe operation ensured by the instant detection of non-shreddable
effective shredding with a torque of up to 480,000 nm and robust planetary gears

Operation & Handling

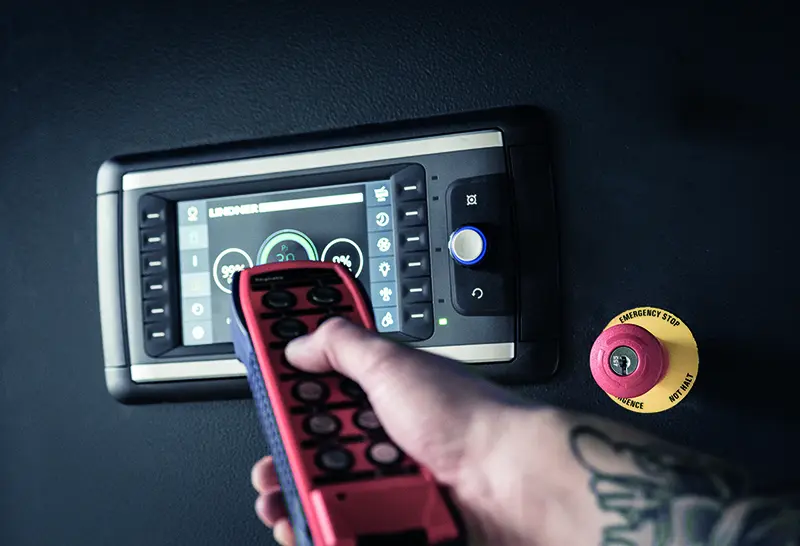

Easy-To-Use Control

Sophisticated control technology with touchscreen display and remote control for safe operation, handling and control of the entire machine.

user-friendly hmi bosch-rexroth controller with intuitive menu
convenient shredder operation from the wheel loader using our customisable remote control
high uptimes thanks to our guided fault diagnosis function
location-independent, fast software support thanks to our remote maintenance system with integrated gsm module

Material Output & Fe Metal Separator

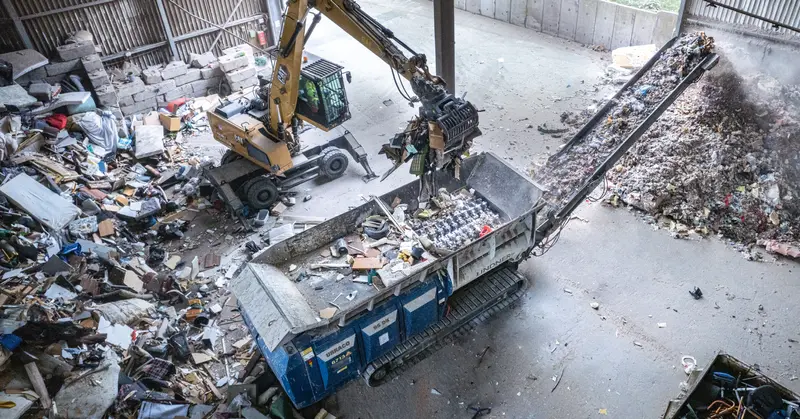

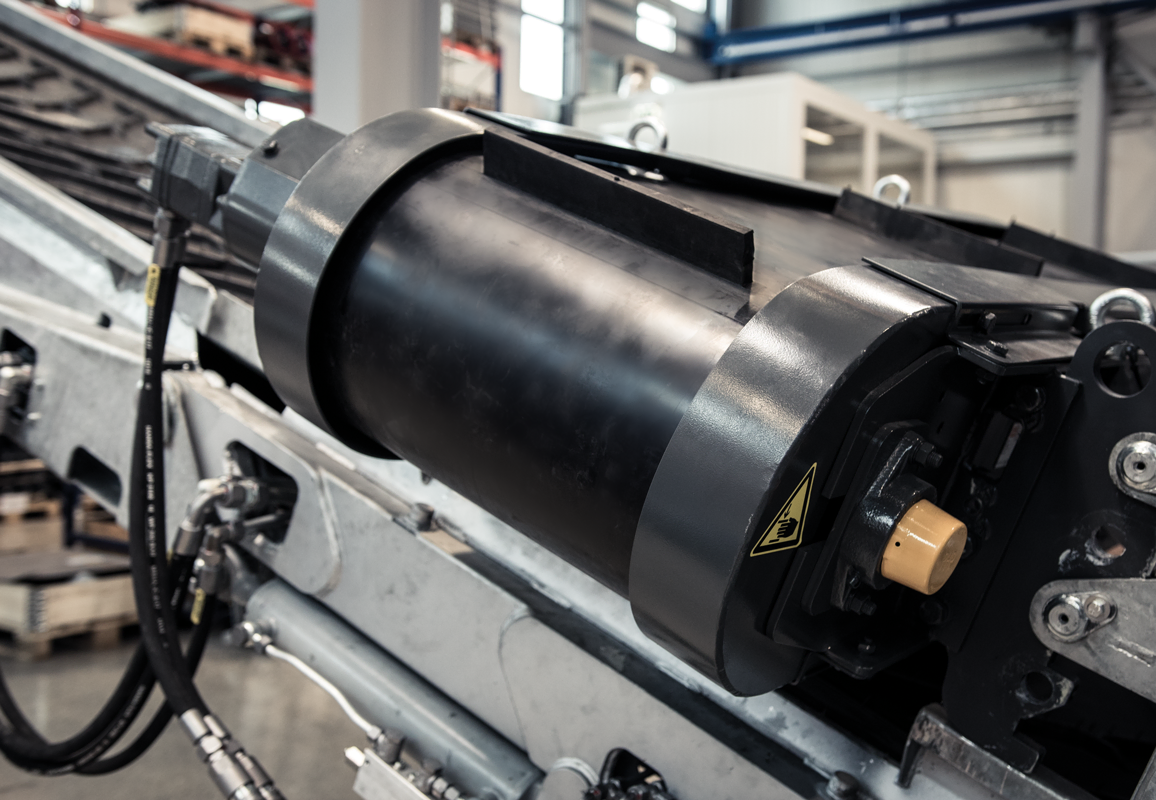

Well-engineered feed and discharge systems

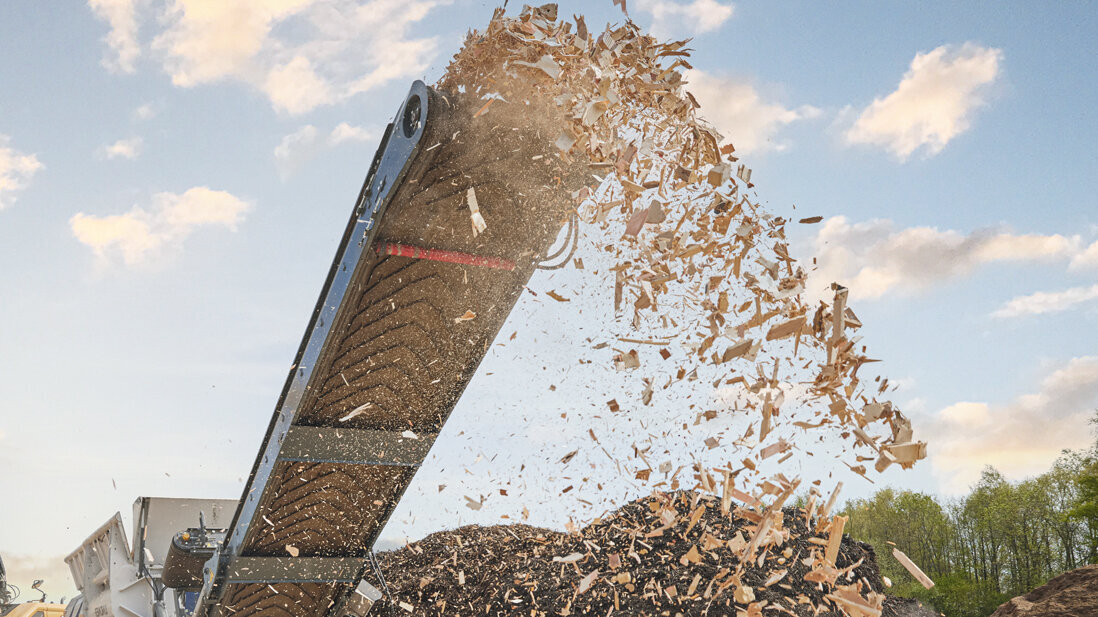

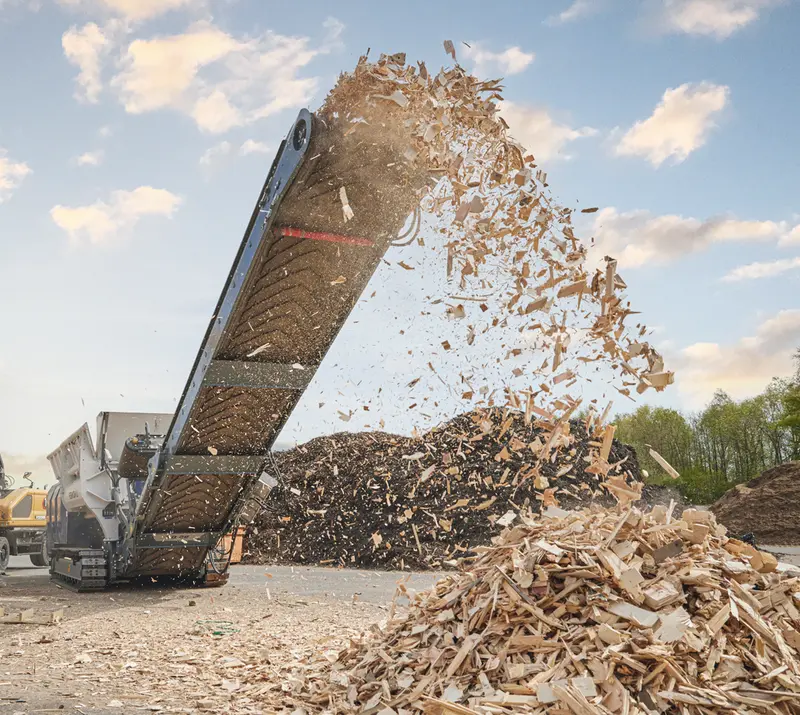

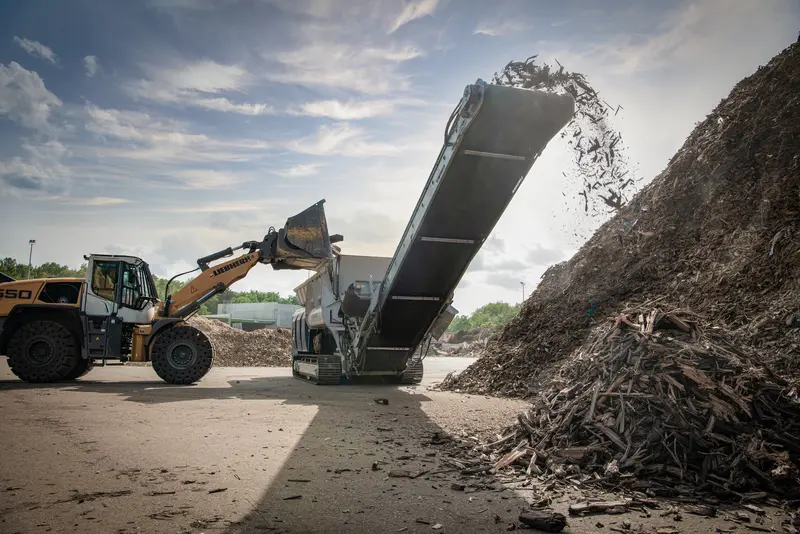

The integrated single-belt discharge conveyor is powered hydraulically and might be completely folded away. The height of the conveyor belt can be easily adjusted during operation by simply lifting the belt from the wheel loader during shredding. For particularly heavy materials such as light scrap and tough commercial waste, the conveyor belt can be reinforced with steel.

ferrous metal separation with an optional integrated over-belt magnet
consistent output with our smart double tilting hopper system
low dust emissions due to the hydraulic height-adjustable conveyor belt, which can even be adjusted during operation

Mobility

Robust Tracked Chassis

The mobile Urraco U95 can be comfortably moved on-site with a two-hand joystick remote control. The integrated tracked system is thereby hydraulically powered by the machine and operates completely independently.

independent manoeuvring of the machine thanks to hydraulic crawler tracks
optional rubber pads available for gentle operation on tarmacked areas
secure hold and anchoring for maximum stability during operation

Fe Metal Separator

Permanent over-belt magnet for ferrous metal separation
Fitted above the conveyor belt
Hydraulically height-adjustable
Incl. discharge chute

Water Sprinkling System

To remove dust from the filling and discharge areas
4 pcs. spray nozzles positioned in the suction hood
2 pcs. spray nozzles positioned in the output area
Incl. water filter and pressure limiter
Switch it ON/OFF using the control panel

Fire Extinguishing System

For effective fire extinguishing in the engine compartment
Releases cooling and suffocating foam
Self-monitoring, no electricity needed
Robust and maintenance-free thanks to galvanised, non-pressurized pipes

Hardfacing Kit

Ideal for shredding particularly abrasive material
Knife hardfacing (type HW)
Scraper hardfacing (type HW)
Support wire made of cobalt hard alloy
